It can be washed as a whole. Wash in a liquid bathtub with a depth of 10 cm within 5 minutes.
The unique switching moderation mechanism, which is a combination of a coil spring, a sliding rod, and a switching plate, provides reliable switching and a light operation feeling.
The PC-H and PC-V terminal types can be applied to 1/2 inch card racks.
By using resin for the lever, we have secured an electrostatic withstand voltage of 20 kV or more (at the tip of the lever).
Since the lever tilt angle is large (26 ° C), the tilt direction becomes clear.
Uses a sliding twin crossbar contact mechanism. Maintains stable and high contact reliability in the small current and low voltage range.
The terminal part has an epoxy seal to prevent the ingress of flux and the occurrence of terminal backlash, further improving contact stability.
The pitch between terminals is for printed circuit boards that use inch pitch.

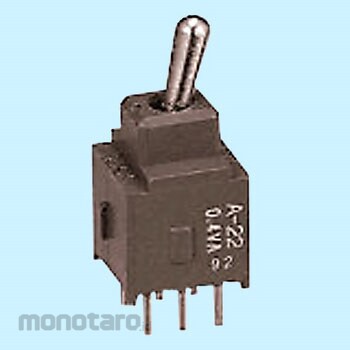

NKK Switches (formerly Nippon Kaikei) Basic lever type toggle switch A series PC-H terminal type (2-pole double-throw)
#Grup produk P115138614
Spesifikasi
| Functional Operation | ON - ON |
|---|---|
| Heat Resistance | When using a soldering iron (when the board is mounted): Temperature 350 ° C or less 3 seconds or less When using a solder bath: Temperature 270 ° C or less 5 seconds or less |
| Insulation Resistance (MΩ) | 500 or more (DC500V) |
| Number of Poles | 2 |
| Operating Temperature Range (°C) | -30~85 |
| Operation Mechanism | Basic lever |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable For | Color cap (AT-4003), Mounter (AT-531) |
| Terminal Shape | PC-H terminal |
| Withstand Voltage | AC500V 1 minute or more |
