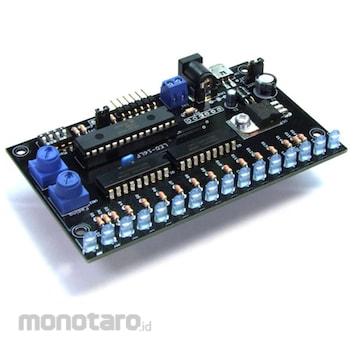

It is a digitally controlled LED flasher that uses a microcomputer. 16 high-brightness type LEDs (light emitting diodes) lined up in a row light up in various modes. A pseudo afterimage effect is achieved in which the LED turns off while the brightness gradually decreases when the LED is turned off. In each mode, parameters such as progress speed and afterimage effect can be adjusted with the volume on the board. (Adjustment details differ depending on the mode.) It also supports lighting pattern control using numerical data using a serial port. A DC power supply (9 to 12V) such as an AC adapter or a USB power supply (5V) can be used as the power supply.
* Power supply is not included. Please prepare separately
Kyohritsu Electronic Industry 16 LED Flasher
#Grup produk P115135413
Spesifikasi
| Board dimensions (width W x depth D x height H) (mm) | 100 x 60 x 12 (excluding solder surface protrusions) |
|---|---|
| Current Consumption (mA) | Maximum during operation 160 (all lighting / maximum brightness) |
| Power Supply Voltage (V) | DC jack (CN1) / terminal block (CN2): DC9-12, USB connector (micro B) (CN3): DC5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationAdjustment volume: 2 (VR1, VR2)
