The resin material is made of nylon alloy, which has excellent weather resistance and oil resistance. The side walls of the case are lower than the terminals, making wiring easy. A nameplate can be attached to the flat space on the cover.
Relay of power circuits, operation circuits, sensors, solenoids, etc.
* Pay attention to the order and direction of rubber push and ring installation when tightening the cap. If it is not installed correctly, waterproof performance cannot be ensured.

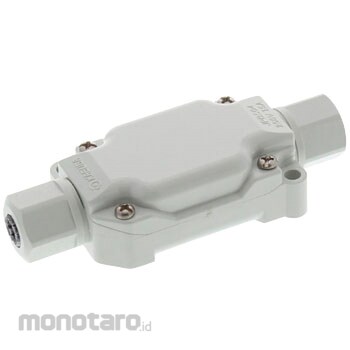

PATLITE (formerly Kasuga Electric) Waterproof relay terminal box
#Grup produk P115130144
Spesifikasi
| Insulation Resistance (MΩ) | 1000 or more (DC500V megger) |
|---|---|
| Operating Temperature Range (°C) | -25~80 |
| Protection Class | IP67 |
| Rated Current (A) | 15 |
| Rated Voltage (V) | AC,DC250 |
| Terminal screw | M3(0.6~0.9N.m) |
| Withstand Voltage | 2000V for 1 minute |
