Wall-mounted type that can be controlled via LAN communication.
It allows for a variety of expressions and improves visibility.

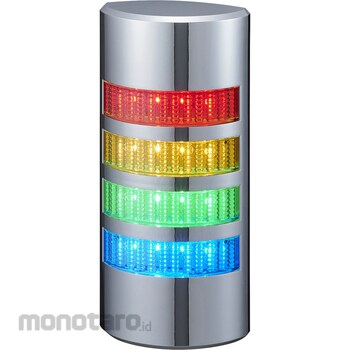

PATLITE (formerly Kasuga Electric) Wall-mounted stacked signal light (LAN compatible) WE-LAN series
#Grup produk P115130065
Spesifikasi
| Allowable Voltage Range (V) | Rated voltage ± 10% |
|---|---|
| Applicable Standard | UL508, CSA-C22.2 No.14, FCC Part15 SubpartB(Class A), ICES-003 Issue 7(Class A), EN 61000-6-4, EN 61000-6-2, KS C 9610-6-4, KS C 9610-6-2 |
| Buzzer Sound | Blow pattern: 7 patterns |
| Color | Body color: Chrome plating specifications |
| Communication Protocol | Ethernet (IEEE802.3 compliant), 10BASE-T/100BASE-TX (Auto-MDI/MDIX compatible) |
| Globe Type | Clear glove |
| Included Accessories | Pan head screws (M4X25) x 4, flat washers (DIA4X8X0.5) x 4, hexagonal nuts with flanges (M4) x 4 |
| LED Color | 9 colors (red, yellow, lemon, green, sky, blue, purple, peach, white) |
| Lead Wire Length (mm) | 1000 |
| Light Source | LED |
| Location to Install | Indoor/wall mount |
| Mass (kg) | 0.42 |
| Material | Lens: PC, Body: ABS |
| Mounting Side | Positive direction |
| Number of Tiers | 4 |
| Operating Ambient Humidity (%RH) | 85 or less, no freezing or condensation |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 90x37.5x206 |
| Protection Class | IP23 (IEC 60529) *Excluding mounting screws/When mounted on a wall or in the forward direction |
| Rated Power Consumption (W) | 5.5 |
| Rated Voltage (V) | DC24 |
| Sound Pressure Sensitivity (dB) | 88(at 1m) |
| Storage Humidity (%RH) | 85%RH or less, no freezing or condensation |
| Storage Temperature (°C) | -10~+60 |
| Type | Stacked signal lights |
| Type of Action | Signal light: 10 patterns + off, Display color: 9 colors, Blow pattern: 7 patterns |
| Type of Sign | Wall mounting |
| Wiring Connection | Power input: Cabtire cord, Ethernet: RJ-45 connector (female) |
