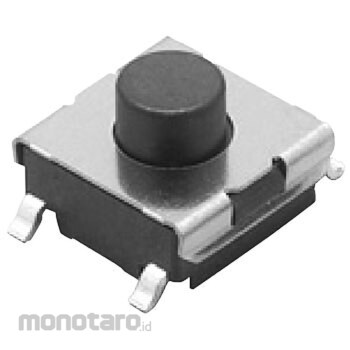

OMRON Surface Mount Tactile Switch B3FS
#Grup produk P115126141
Spesifikasi
| Ambient Humidity to Use | 35~85% RH (at +5~+ 35 ° C) |
|---|---|
| Contact Configuration | 1a (normally open contact) |
| Insulation Resistance (MΩ) | 100 or more (at 100 VDC mega) |
| Pretravel (PT) | 0.25(-0.1~+0.2)mm |
| Protection Class | IEC IP00 |
| Rating | DC3 ~ 24V + 1 ~ 50mA + Resistive load |
| Shock Resistance Malfunction (m/s²) | Up to 100 |
| Switch Operation | Momentary |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm |
| Withstand Voltage | AC250V 50/60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Surface mount terminal type reflow solder suitable for high-density mounting is possible.
