A high withstand voltage of 2000V AC and a high shock withstand voltage of 2500V 2 x 10μs (Telcordia standard) between coil contacts are achieved.
Achieves high sensitivity with a rated power consumption of 140mW.

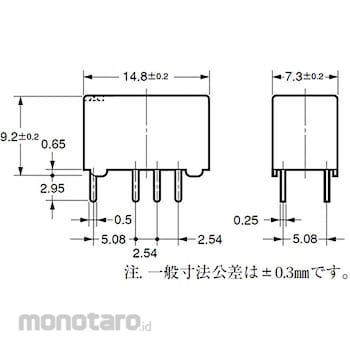

Compact size of 9.4mm high x 7.5mm wide x 15mm long.
Compatible with IRS mounting method by using heat-resistant materials.
Acquired UL/CSA standard for standard format.
Added the terminal type for printed circuit board (G6S□-2) to the series.
EN60950 certified type is also available. (-Y type)
Telephone-related equipment, communication equipment, measuring equipment, OA equipment, AV equipment, etc.
* Rated current and coil resistance are values when the coil temperature is + 23 ° C, and the tolerance is ± 10%.
* Operating characteristics are values when the coil temperature is + 23 ° C.
* The maximum allowable voltage is the maximum value of the voltage that can be applied to the relay coil.

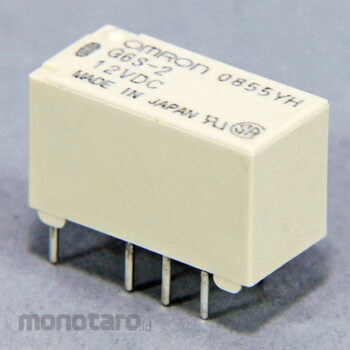

OMRON Surface mount relay G6S
#Grup produk P115126123
Spesifikasi
| Ambient Humidity to Use | 5~85%RH |
|---|---|
| Contact Configuration | 2c |
| Height (mm) | 9.2 |
| Insulation Resistance (MΩ) | 1000 or more (with DC500V mega) |
| Length (mm) | 15 |
| Mass (g) | About 2 |
| Number of Poles | 2-pole |
| Protection Class | Plastic seal type |
| Shock Resistance (Destruction) | 1000m/s<sup>2</sup> |
| Terminal Shape | Printed circuit board terminal |
| Type of Sign | Board mounting |
| Vibration Resistance (Destruction) | 10 to 55 to 10 Hz, single amplitude 2.5 mm (double amplitude 5 mm) |
| Width (mm) | 7.5 |
