Surface mount terminal type that achieves high reliability with a seal structure The equivalent of IP67 (IEC-60529) seal structure ensures high contact reliability even when used in dusty places or around water. * Excluding terminals.
Surface mount terminal type suitable for high-density mounting.
A series with a ground terminal that is convenient for anti-static measures is also available.

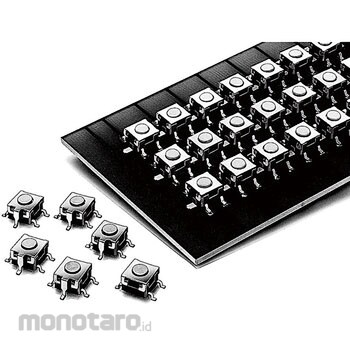

OMRON Sealed Surface Mount Tactile Switch B3S
#Grup produk P115119309
Spesifikasi
| AS ONE Part Number | 64-3342-68 |
|---|---|
| Ambient Humidity to Use | 35~85% RH (at +5~+ 35 ° C) |
| Color | (Plunger) Black |
| Contact Configuration | 1a (normally open contact) |
| Durability | 300,000 times or more |
| Earth Terminal | None |
| Height (mm) | 4.3 |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC mega) |
| Mass (g) | About 0.3 |
| Operating Force OF (N) | Up to 2.26 |
| Pretravel (PT) | 0.25(-0.1~+0.2)mm |
| Rating | DC3 ~ 24V + 1 ~ 50mA + Resistive load |
| Shock Resistance (m/s²) | Up to 1000 |
| Shock Resistance Malfunction (m/s²) | Up to 100 |
| Type | 6mm square B3S-1000 series |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm |
| Withstand Voltage | AC500V 50/60Hz 1min |
