DIL-IC shape with a seal structure realizes miniaturization The precision mechanical design of the rotary cam and contact piece drive system realizes miniaturization and enables high-density mounting.
Top surface operation type and side operation type are available in a series.
The base part is insert-molded, and the rotor part has an O-ring seal structure equivalent to IP64 (IEC-60529) to prevent flux from entering, and also ensures high contact reliability even in dusty places and around water.
The terminal part protrudes from the side of the case, making it easy to check the circuit.

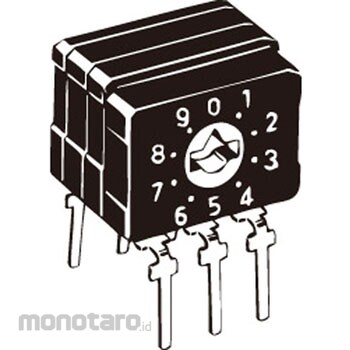

OMRON Sealed rotary dip switch (side operation type) A6CV
#Grup produk P115119284
Spesifikasi
| AS ONE Part Number | 64-3335-41 |
|---|---|
| Color | (Rotor) Orange |
| Electrical Durability | More than 2000 steps |
| Electrical Rating | 30 VDC 0.1 A, 3.5 VDC 10 μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Mass (g) | About 0.8 |
| Operating Humidity Range | 35 to 95% RH (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -20 to +70 60% RH or less (with no icing or condensation) |
| Operating Torque (N m) | 0.98 x 10 <sup>-2</sup> or less |
| Position | 10 |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Type | Side operation type |
| Type of Output Code | Real code |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: 250 VAC for 1 min |
