DIP switch that achieves high reliability with a seal structure The seal structure IP64 (IEC-60529) equivalent prevents the ingress of flux and ensures high contact reliability even in dusty places and around water.
A light operation feel due to the smooth switching mechanism.
The contacts are gold-plated, and the twin contacts ensure high reliability with a self-cleaning mechanism that slides.
OMRON Sealed dip switch A6D
#Grup produk P115119266
Spesifikasi
| AS ONE Part Number | 64-3335-58 |
|---|---|
| Color | (Strike lever) Orange |

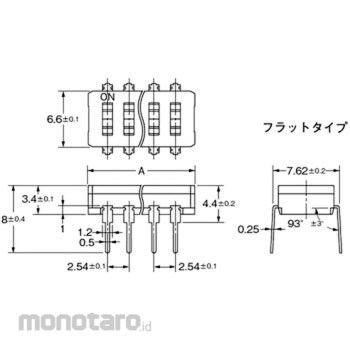

| Dimension A (mm) | 22.4±0.2 |
| Electrical Durability | 2000 times or more |
| Electrical Rating | 30V DC 30mA, 3.5V DC 10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Mass (g) | 0.8 |
| Number of Poles | 8 |
| Operating Humidity Range | 35 to 95% RH (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -20 to +70 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Type | Convex type |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: AC500V 1min |
