Low-cost type rotary DIP switch The rotor part has an O-ring sealed structure to prevent dust from entering.
Easy circuit design.

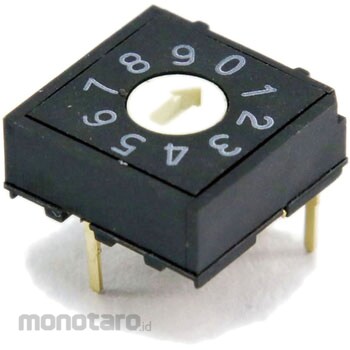

OMRON Rotary dip switch (top operation) A6R
#Grup produk P115118744
Spesifikasi
| AS ONE Part Number | 64-3336-27 |
|---|---|
| Color | (Rotor) white |
| Electrical Durability | More than 5000 steps |
| Electrical Rating | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Mass (g) | About 0.6 |
| Operating Humidity Range | 35 to 95% RH (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -25 to +80 60% RH or less (with no icing or condensation) |
| Operating Torque (N m) | 1.96x10<sup>-2</sup> |
| Position | 16 |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Terminal Structure | 4x1 |
| Type | Top operation flat type |
| Type of Output Code | Real code |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: 250 VAC for 1 min |
