Body length 20 mm, round body type Φ12 series.
High brightness and uniform surface illumination.
Easy to drill because of the round body shape.
Achieves a small and good operation feel.

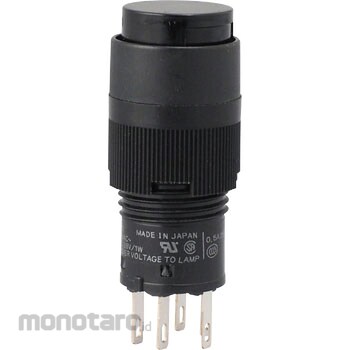

OMRON Pushbutton Switch (Round) (Non-Illuminated) (Round Body Φ12) A3C
#Grup produk P115114225
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Contact Configuration | 1a1b |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 1,000,000 times or more |
| Protection Class | IP40 |
| Safety Standard | UL(File No. E41515)/CSA(File No. LR45258)/CCC(GB/T14048.5) |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 150m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to 65 (no freezing or condensation) |
| Stroke (mm) | Lock stroke LTA: Min. 0.5 |
| Switch | For general load |
| Type | Small pushbutton switch |
| Type of Illumination | Non-illuminated |
| Type of Operation | Momentary |
| Type of Terminal | Solder terminal |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| Withstand Voltage | Between homopolar terminals, between lamp terminals (when incandescent lamp and LED lamp are not mounted): AC2500V 50 / 60Hz 1min / Dipolar terminal, between each terminal and ground: AC2000V 50 / 60Hz 1min |
