Built-in type V micro switch, compatible with business and consumer equipment.
In addition to momentary operation, a lock type is also available.
Six types of operation unit colors are available.
Achieves a good feel with a built-in micro switch.

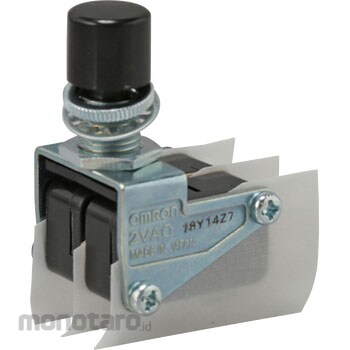

OMRON Pushbutton switch (round body Φ10.5) VAQ
#Grup produk P115114100
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mass (g) | Approx. 12 to 40 |
| Mechanical Durability | 3 million times or more |
| Protection Class | IP00 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 200m / s <sup>2</sup> |
| Storage Temperature (°C) | -25 to 80 (no freezing or condensation) |
| Type | Push button switch |
| Type of Illumination | Non-illuminated |
| Type of Terminal | Tab (#187)/soldered terminal |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| Withstand Voltage | Between homopolar terminals: 1000 VAC 50/60 Hz for 1 min / between charged metal parts and ground, Between each terminal and non-charged metal parts: 1500 VAC 50/60 Hz for 1 min |
