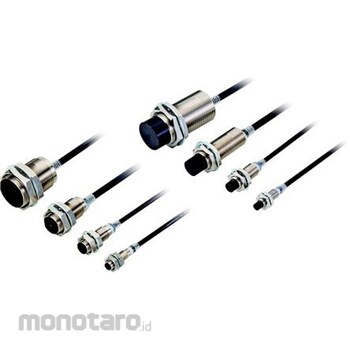

OMRON Proximity Sensor Barrel Type Detection Range 3 mm Thread Size M8 x 1 Recessed Type 250Hz
#Grup produk P115113244
Spesifikasi
| AS ONE Part Number | 65-7282-12 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
To extend the range of a proximity sensor, it is necessary to increase its sensitivity, but increasing the sensitivity increases the effect of changes in detection distance due to temperature changes. The E2E NEXT proximity sensor is equipped with "Thermo Distance Control," a newly developed long-distance stable detection technology by OMRON. "Thermo Distance Control" uses "PROX2," which minimizes changes in detection distance due to temperature changes by writing a temperature correction value externally at the time of shipment, something that was not possible with conventional analog ICs. The indicator, equipped with a high-brightness LED, can be displayed 360°
Feature
Specification*Sensor technology: Inductive*Thread size: M8 x 1*Detection range: 3 mm*Connection method: Cable*Power supply voltage: 10 -> 30 V dc*Length: 37.8 mm*Width: 15 mm*Maximum DC voltage: 30 V*Mounting type: Recessed*Output switching current: 100 mA*Shielding: Shielded*Representative standards: CE certified, CSA C22.2 No. 14-13, UL508, UL certified*Code number: 175-6906
