1 ultra-compact power relay that achieves input 80A, energization, and cutoff 20A.
The motor load can be opened and closed with an input current of 80A, energization, and a cutoff current of 20A.
Achieves high capacity opening and closing and high durability despite its small size.
Secures insulation distance that complies with UL and CSA air conditioner standards.
Uses an insulation structure with high noise resistance.
A standard product with a flux resistant structure.
RoHS compliant.
Air conditioner

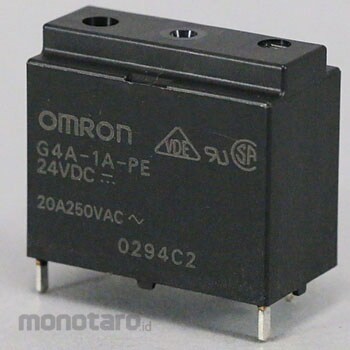

OMRON Power relay G4A
#Grup produk P115112388
Spesifikasi
| Ambient Humidity to Use | 5~85%RH |
|---|---|
| Coil Rated Voltage (V) | DC24 |
| Contact Configuration | 1a |
| Insulation Resistance (MΩ) | 1000 or more (with DC500V mega) |
| Mass (g) | About 23 |
| Mechanical Durability | 2 million times |
| Number of Poles | 1 |
| Operating Voltage | 70% or less |
| Power Consumption (W) | 0.9 |
| Rated Voltage (V) | DC24 |
| Return Voltage | More than 10 |
| Shock Resistance (Destruction) | 1000m/s<sup>2</sup> |
| Shock Resistance (Malfunction) | 200m/s<sup>2</sup> |
| Terminal Shape | Tab terminal, PCB terminal |
| Terminal Structure | For both tab terminals and printed circuit board terminals |
| Type | Power relay |
| Vibration Resistance (Destruction) | 10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5) |
| Vibration Resistance (Malfunction) | 10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5) |
