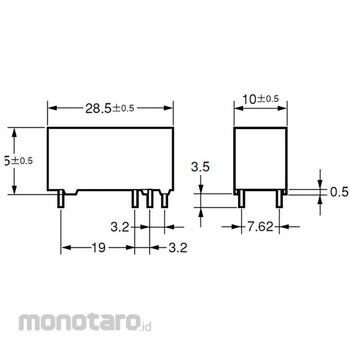

A small power relay that realizes 1-pole 8A switching. Low profile with a height of 15mm (approximately 60% of Omron's G2R). Although small, AC250V, 8A can be opened and closed. High sensitivity with power consumption of 220mW. High insulation with an insulation distance of 8mm and a shock resistance voltage of 10kV between coil and contact. The operating ambient temperature satisfies 85°C. The standard product has acquired VDE standards. RoHS compliant.
Control equipment
OMRON Power relay G6RN
#Grup produk P115112306
Spesifikasi
| Ambient Humidity to Use | 5~85%RH |
|---|---|
| Contact Configuration | 1c |
| Insulation Resistance (MΩ) | 1000 or more (with DC500V mega) |
| Mass (g) | About 9 |
| Number of Poles | 1 |
| Operating Voltage | 70% or less |
| Power Consumption (mW) | About 220 |
| Protection Class | Plastic seal structure |
| Return Voltage | More than 10 |
| Shock Resistance (Destruction) | 1000m/s<sup>2</sup> |
| Shock Resistance (Malfunction) | a contact side 100m / s <sup>2</sup> / b contact side 50m / s <sup>2</sup> |
| Terminal Shape | Printed circuit board terminal |
| Terminal Structure | Printed circuit board terminal |
| Type | Power relay |
| Vibration Resistance (Destruction) | 10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Vibration Resistance (Malfunction) | 10 to 55 to 10 Hz a contact side/single amplitude 0.75 mm (double amplitude 1.5 mm), b contact side/single amplitude 0.4 mm (double amplitude 0.8 mm) |
