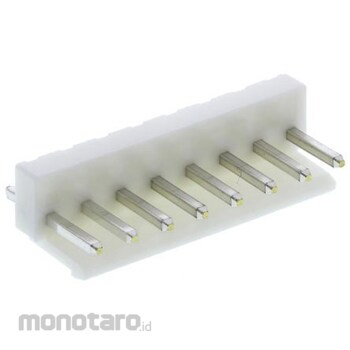

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) PCB Connection Pin Header 8-way 3.96mm 1-row B8P-VH(LF)(SN)
#Grup produk P115111185
Spesifikasi
| Cell Spacing (mm) | 3.96 |
|---|---|
| Connection Direction | Top entry |
| Connection Method | Solder |
| Connector System | Wire to board |
| Number of Lines | 1 |
| Number of Poles | 8 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | 10 |
| Rated Voltage (kV) | 250 |
| Series | VH |
| Surface Treatment (Contact) | tin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationMates with VH series crimp housings. See typical part number: 762-0746 762-0746. VH Series Headers. JST's VH series wire-to-board, 3.96 mm pitch, through-hole connectors are suitable for signal, power, and output circuit applications. The VH series wire-to-board, 3.96 mm pitch, through-hole connectors are compact yet offer high capacity, ensuring reliable contact retention between the contacts and the mount. VH series headers are suitable for PCBs up to 1.6 mm thick. The mating VH series connectors have a PCB height of 16.5 mm for top entry and 10.5 mm for side entry. Temperature range: -25 to 85°C. Header material: PA66 UL94V-0, natural.
