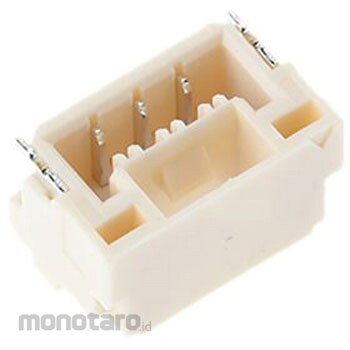

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) PCB Connection Pin Header 3-Pole 1.25mm SM03B-GHS-TB(LF)(SN)
#Grup produk P115110982
Spesifikasi
| Cell Spacing (mm) | 1.25 |
|---|---|
| Connection Direction | Right angle |
| Connection Method | Solder |
| Connector System | Wire to board |
| Number of Poles | 3 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | 1 |
| Rated Voltage (kV) | 50 |
| Series | GH |
| Surface Treatment (Contact) | tin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Specification1.25mm Wire-to-Board GH Series Side Entry Headers. The JST 1.25mm pitch GH wire-to-board connector product series features low insertion force, making it ideal for PDPs, LCDs, or any small electronic device. The GH wire-to-board product series is designed with a safety locking mechanism built into the connector components, including the contacts. This 1.25mm pitch, SMT shrouded header for wire-to-board GH connectors features fork-shaped contacts that are supported in grooves cut into the side of the housing to prevent deformation. For 1.25mm GH series housings, see typical part number 752-1734.
