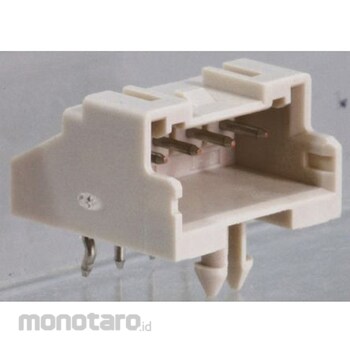

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) PCB Connection Pin Header 12-way 2.5mm 1-row S12B-XASK-1 (LF)(SN)
#Grup produk P115110867
Spesifikasi
| Cell Spacing (mm) | 2.5 |
|---|---|
| Connection Direction | Right angle |
| Connection Method | Solder |
| Connector System | Wire to board |
| Number of Lines | 1 |
| Number of Poles | 12 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | 3 |
| Rated Voltage (kV) | 250 |
| Series | XA |
| Surface Treatment (Contact) | tin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationXA Series 90° Shrouded Headers. JST's XA Series 2.5 mm pitch 90° wire-to-board shrouded PCB header connectors. These side-entry headers feature a locking ramp mechanism that ensures a secure connection with the mating connector and prevents disconnection during vibration or the assembly process. These XA Series PCB headers feature integrated insertion guides and polarizing bosses for easy insertion and accurate placement on the PCB. The connector housing is made of glass-filled PA66 nylon, which is effective against solder cracking issues. Locking device for secure connection, Accurate and easy insertion with insertion guides, Low insertion force, Accurate placement on the PCB with polarizing bosses, and solder cracking-resistant material.
