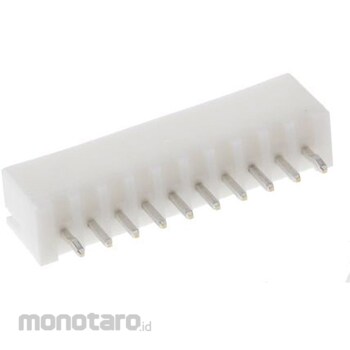

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) PCB Connection Pin Header 10-way 2.5mm 1-row B10B-XH-A(LF)(SN)
#Grup produk P115110821
Spesifikasi
| Cell Spacing (mm) | 2.5 |
|---|---|
| Connection Direction | Straight |
| Connection Method | Solder |
| Connector System | Wire to board |
| Number of Lines | 1 |
| Number of Poles | 10 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (kV) | 250 |
| Series | XH |
| Series Number | B10B |
| Surface Treatment (Contact) | tin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationXH Shrouded Headers. JST XH series box-type through-hole shrouded headers are 2.5mm pitch, single-row wire-to-board disconnect, crimp style connectors. Top entry and side entry configurations are available. The wafer material for XH series box-type shrouded headers is PA66 with a UL 94V-0 rating. For these XH series box-type shrouded headers, the posts are tin-plated brass. For mating with XH series receptacle housings, see part number 820-1611. Features: Wire size: 30 to 22 AWG Contact count: 2 to 20 pins Voltage rating: 250V ac/dc Applications: Industrial
