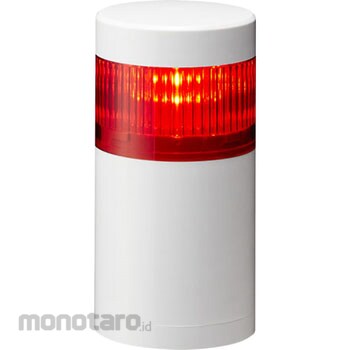

PATLITE (formerly Kasuga Electric) Multilayer Signal Light Signal Tower Φ70 LR7 Series
#Grup produk P115106800
Sebelum PPN:
Rp2.399.900 - Rp5.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use | 90% RH or less/no condensation |
|---|---|
| Applicable Standard | UL508, CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), KC (KN 61000-6-4, KN 61000-6-2), FCC Part15 SubpartB Class A |
| Body Color | Off white |
| Buzzer Sound | No.1: Intermittent sound (beep beep)/3378Hz, No.2: Continuous sound (beep)/3378Hz, No.3: High and low sounds (beep beep)/2016Hz & 3012Hz, No.4: Sweep sound (whirling)/1000Hz-4032Hz, Setting method: Can be switched with DIP switch |
| Color (Body) | Off white |
| Conform to | NPN/PNP |
| Current (mA) | Signal line current: [Standard] LED unit each color: 40, buzzer unit: 40/[Maximum] LED unit each color: 45, buzzer unit: 250 |
| Light Source | LED |
| Location to Install | Indoor |
| Material | PC |
| Mounting Side | Positive direction |
| Number of Blinks (Times / Minute) | 60±2 |
| Protection Class | IP65 (IEC 60529), NEMA TYPE 4x, 13 Environmental conditions: When installed in the upright position |
| Rated Power Consumption (W) | [Standard] LED unit of each color: 1, buzzer unit: 1, [Maximum] LED unit of each color: 1.3, buzzer unit: 1.3 |
| Rated Voltage (V) | DC24 |
| Sound Pressure Level (dB) | Typ.90, approximately -10 when sound is reduced / Switching by DIP switch, Environmental conditions: Buzzer sound [No.4 Sweep sound (hum)] All around / at 1m from the product surface |
| Storage Temperature Range (°C) | -30~60 |
| Type | Stacked signal lights |
| Type of Sign | Direct attachment |
| Wiring connection method | Cap tire specifications |
