Compact and highly sensitive relay for 1-pole signal switching Impressive power consumption is only 98mW (rated power consumption: 200mW), achieving high sensitivity.
Designed to ensure an impact resistant voltage of 1500V (10 x 160μs) and comply with the FCC standard.
Adopted stick packaging in consideration of support for automatic mounting.
It is a plastic seal type and can be soldered automatically.
A series of ultrasonic cleaning compatible types.
Obtained UL and CSA standards as standard
Telephone-related equipment, communication equipment, OA equipment, industrial equipment, disaster prevention and crime prevention equipment
* Rated current and coil resistance are values when the coil temperature is + 23 ° C, and the tolerance is ± 10%.
* Operating characteristics are values when the coil temperature is + 23 ° C. * The maximum allowable voltage is the maximum value of the voltage that can be applied to the relay coil.

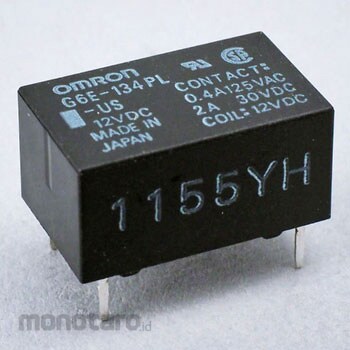

OMRON Micro Relay (Small, High-Sensitivity 1-pole Signal Switching Relay) G6E
#Grup produk P115105403
Spesifikasi
| Ambient Humidity to Use | 5~85%RH |
|---|---|
| Contact Configuration | 1c |
| Contact Material | Au alloy + Ag |
| Contact Specifications | Crossbar twin |
| Electrical Durability | 500,000 times or more (rated load DC30V 2A resistance load, DC30V 1A inductive load) (switching frequency 1800 times / h) 200,000 times or more (DC30V 3A resistance load) (switching frequency 1800 times / h) |
| Insulation Resistance (MΩ) | 1000 or more (with DC500V mega) |
| Mass (g) | About 2.7 |
| Mechanical Durability | 100 million times (opening and closing frequency 36,000 times / h) |
| Number of Poles | 1 pole |
| Protection Class | Plastic seal type |
| Resistive load | AC125V 0.4A,DC30V 2A |
| Shock Resistance (Destruction) | 1000m/s<sup>2</sup> |
| Shock Resistance (Malfunction) | 300m/s<sup>2</sup> |
| Standard | UL (No.E41515), CSA (No.LR31928) standard certified standard product |
| Terminal Shape | Printed circuit board terminal |
| Terminal Structure | Printed circuit board terminal |
| Type | Printed circuit board relays |
| Vibration Resistance (Destruction) | 10 to 55 to 10 Hz, single amplitude 2.5 mm (double amplitude 5 mm) |
| Vibration Resistance (Malfunction) | 10 ~ 55 ~ 10Hz Single amplitude 1.65mm (double amplitude 3.3mm) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationNon-ultrasonic cleaning type
