Compact, high-sensitivity 1-pole signal relay.

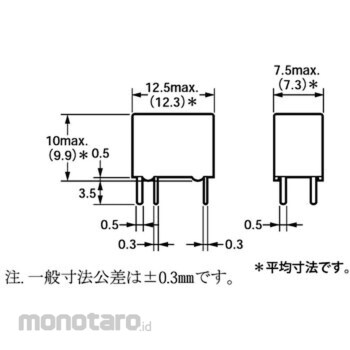

Small size 12.5 (L) x 7.5 (W) x 10 (H) mm.
High sensitivity coil 150mW.
As it is a plastic seal type, it has high environmental resistance.
Coil-contact FCC part68 compliant. (1500V, 10 × 160μs)
Telephones, modems, facsimiles, portable devices, audio devices, etc.

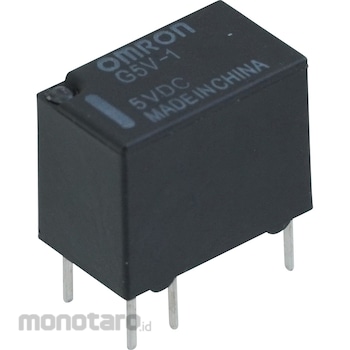

OMRON Micro relay (compact, high sensitivity 1 pole signal relay) G5V-1
#Grup produk P115105388
Spesifikasi
| Contact Configuration | 1c |
|---|---|
| Insulation Resistance (MΩ) | 1000 or more |
| Number of Poles | 1 pole |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 7.5x12.5x10 |
| Power Consumption (mW) | About 150 |
| Protection Class | Plastic seal type |
| Return Voltage | More than 10 |
| Shock Resistance (Destruction) | 1000m/s<sup>2</sup> |
| Terminal Shape | Printed circuit board terminal |
| Type | Printed circuit board relays |
