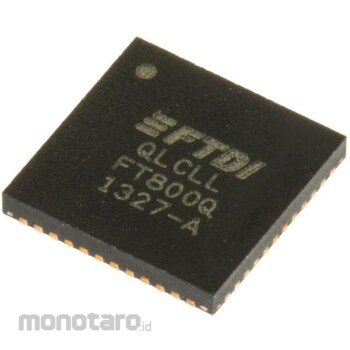

Bridgetek LCD controller FTDI Chip

Specification
Built-in memory: 256kB * Display support: RGB interface * Mounting type: Surface mounting * Package type: QFN * Pin count: 48 * EVE, Embedded Video Engine FT800. FT800 Embedded Video Engine (EVE) is a graphical user interface (GUI) development Redefines the cost and quality paradigm of. With three-in-one display, audio and touch capabilities, engineers can now easily create state-of-the-art interactive display systems. EVE's object-oriented approach renders the image line-by-line to a resolution of 1/16 pixel, eliminating the traditional framebuffer memory. It controls the object and its attributes by initializing the object memory, creating and manipulating a small display list buffer. This is a process that even a low-end 8-bit CPU can do. The built-in audio controller can play MIDI-like sounds or PCM audio. EVE has a convenient set of fonts and sounds stored in ROM, which can be used for various purposes. Supports QVGA and WQVGA resolution, TFT display, parallel RGB interface 24-bit (true color) support in 18-bit interface with dithering hardware 256 k internal object memory Up to 2000 display objects in 8 kbyte display list Stores objects Embedded controller with 4-wire resistive touch panel PWM output for display brightness programming Improves display perception with anti-aliasing support Low power: typical 35 mA @ active mode down, 25 uA @ sleep mode widget (innovation mechanism) Easily create complex objects (such as analog clocks) with built-in audio output: beeps, tones, recorded audio playback SPI or I2C interface to system microcontroller
