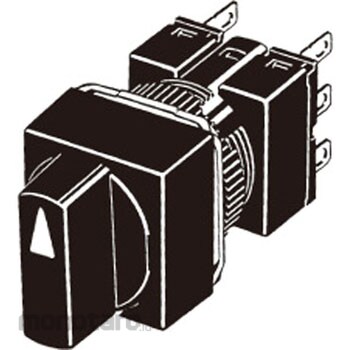

OMRON Knob type selector switch (round type) (round body type Φ16) A165S
#Grup produk P115102442
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | Non-illuminated |
| Protection Class | IP65 |
| Safety Standard | UL(File No. E41515),CSA(File No. LR45258) |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 150m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to 65 (no freezing or condensation) |
| Type of Illumination | Non-illuminated |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| Withstand Voltage | Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
