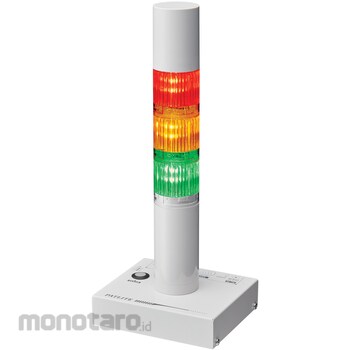

PATLITE (formerly Kasuga Electric) Interface converter with signal light PHE
#Grup produk P115101063
Spesifikasi
| Allowable Voltage Range (V) | AC90 to 264 (when using AC adapter) |
|---|---|
| Ambient Humidity to Use | 20% to 85% RH (no freezing or condensation) |
| Communication Protocol | USB port: CDC (Communication Device Class) protocol, serial port: Asynchronous baud rate 9600bps (no parity, 1 stop bit, 8 bits data length, no flow control) |
| Indicator Lamp | Clear lens specification top row> (red, yellow, green) <bottom row |
| Interface | USB port: USB 2.0 compliant (bus power compatible) Standard B type (female), serial port: RS-232C compliant D-Sub 9 pin (male) |
| Location to Install | Indoor |
| Main Unit Dimensions, Width W x Depth D x Height H (mm) | 117 x 100 x 281.5 (excluding rubber feet) |
| Mass (g) | 545 (± 10%) AC adapter not included |
| Mounting Side | Positive direction |
| Operation | Clear switch, setting switch, buzzer switch |
| Protection Class | IP20 |
| Rated Power Consumption | Standby: 1.2 W (at 100 VAC) 0.9 W (at 24 VDC) 0.2 W (at 5 VDC) / Maximum operation: 4.4 W (at 100 VAC) 3.5 W (at 24 VDC) 1.2 W (at 5 VDC) |
| Sound pressure | 80dB or more (1m in front of the main unit) |
| Storage Humidity Range | 20% to 85% RH (no freezing or condensation) |
| Storage Temperature Range (°C) | -10 ° C to + 60 ° C (with no icing or condensation) |
