Improved touch feel and protection function (compared to the manufacturer) Further shortened body length of 23 mm A compact, sharp and soft operation feel.
Realizes 5 colors (red, yellow, green, white, blue) with LED. (Use green LED for blue)
Improves touch with a built-in micro switch.
Improved protection function with built-in micro switch. (Compared to the manufacturer)
Achieves uniform surface illumination with chip LEDs.
One-touch mounting from the front to the panel.

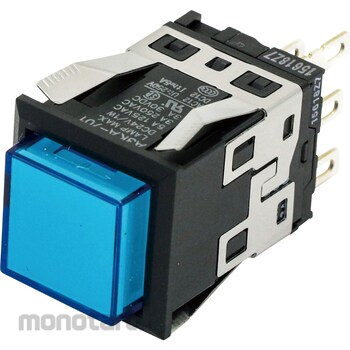

OMRON Illuminated pushbutton switch (square) (square body) A3K
#Grup produk P115099926
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Button Shape | Square |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | LED |
| Mass (g) | About 10 |
| Protection Class | IP00 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 200m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Terminal Shape | Tab terminal |
| Type | Colored light emission type (no division) |
| Type of Illumination | Illumination (LED) |
| Type of Terminal | Tab terminal (#110) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationFor general load
