Body length 40 mm, square body series.
A small, sharp and soft operation feel.
Installation on the panel is one-touch from the front, and lamp replacement is easy without tools.

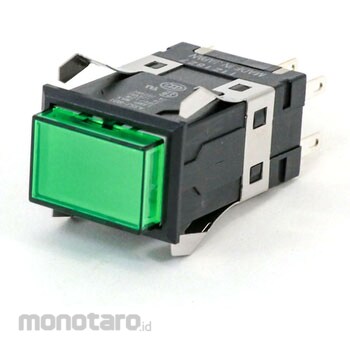

OMRON Illuminated pushbutton switch (rectangular) (LED) (square body) A3S
#Grup produk P115099740
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | Built-in 2 LEDs |
| Mass (g) | About 10 |
| Protection Class | IP00 |
| Safety Standard | UL(File No. E41515),CSA(File No. LR45258) |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Storage Temperature (°C) | -25 to 65 (no freezing or condensation) |
| Type | Colored light emission type |
| Type of Illumination | Illumination (LED) |
| Type of Terminal | Tab terminal (#110) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
