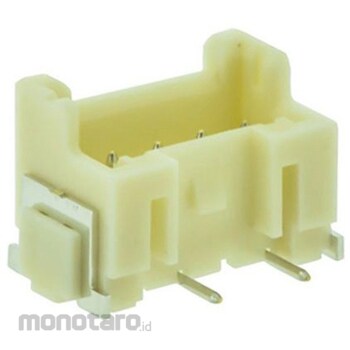

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) header for board connection XA series

Specification
Series: XA * Pitch: 2.5 mm * Number of contacts: 3 * Number of rows: 1 * Body orientation: Straight * Shroud / Unshroud: Shroud * Connector system: Wire to board * Terminal method: Solder * Contact plating: Tin * Rated voltage : 250 V ac / dc * JST XA series 2.5 mm shroud board header connector. 2.5 mm pitch XA series wire-to-board SMT shroud board header connector. This XA 2.5 mm shroud header is equipped with a lock lamp device that can be securely connected to the mating connector. This locking device also helps prevent disconnection during the assembly process and due to vibration. This XA series SMT header has an integrated insertion guide and polar boss for easy insertion and precise placement on the board. The housing of this XA series board header is made of PA66 nylon with glass fiber, which is effective against solder cracking problems. The header pin has a rounded design and is subjected to reflow processing, resulting in low insertion force. Features and benefits. Locking device for secure connection. Insertion guide for accurate and easy insertion. Polar boss for accurate placement on board. Solder crack resistant material. Low insertion force.
