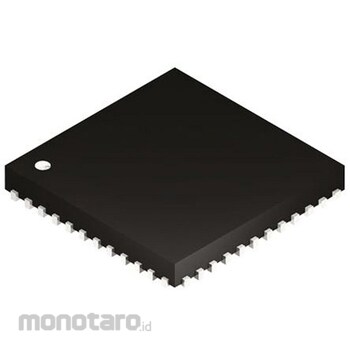

Bridgetek FT811Q-T graphics controller

Specification
EVE, the FT81x Embedded Video Engine. The FT81x series embedded video engine offers new features that give it better performance than the FT80x series, while remaining pin-compatible. The FT81x allows for graphics control, audio control, and touchscreen interfacing. The built-in graphics manipulation capabilities enable high-quality displays with little to no specialist knowledge. Maximum screen resolution: 800 x 600 pixels (SVGA) Video RGB parallel output: 18-bit (FT810/811), 24-bit (FT812/813) Supports 4-wire resistive touchscreens: FT810/812 (RS part numbers: 901-4982, 901-4994, 901-4994) Supports 5-touch capacitive touchscreens: FT811/813 (RS part numbers: 901-4991, 901-4991, 901-4998, 901-4998) Hardware engine for touch tag recognition, tracking and reporting touch movements for up to 255 touch tags Enhanced sketch processing 1 MB of built-in graphics RAM eliminates the need for frame buffer RAM Playback of motion JPEG encoded AVI videos Uses a built-in digital filter to reproduce mono 8-bit linear PCM, 4-bit ADPCM, and μ-Law coding format audio waveforms at sampling frequencies from 8 to 48 kHz, eliminating the need for complex system design for external filtering Supports SPI data line in single, dual, or quad mode (SPI clock: up to 30 MHz) Power mode control allows the chip to be set to power down, sleep, or standby state Supports I/O voltages from +1.8 to +3.3 V
