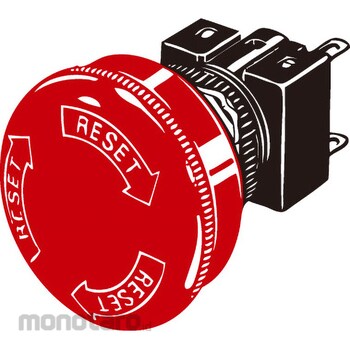

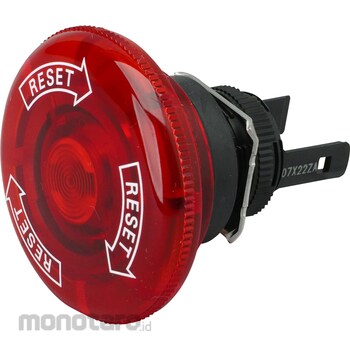

OMRON Emergency stop pushbutton switch (Φ16) operation part A165E
#Grup produk P115093427
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Electric Shock Protection Class | Class II |
| Electrical Durability | 100,000 times or more |
| Function | Non-illuminated, push-lock turn reset |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 100,000 times or more |
| PTI (Proof Tracking Index) | 175 |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Protection Class | IP65 oil resistant type (from front of panel) |
| Shape | Separate type |
| Shock Resistance (Destruction) | 500m/s<sup>2</sup> |
| Shock Resistance (Malfunction) | 300m / s <sup>2</sup> (malfunction within 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Type of Terminal | Solder terminal |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm (malfunction 1ms or less) |
| Withstand Voltage | Between same pole terminals: AC1000V 50 / 60Hz 1min Between different pole terminals, between each terminal and ground: AC2000V 50 / 60Hz 1min Between lamp terminals: AC1,000V 50 / 60Hz 1min |
