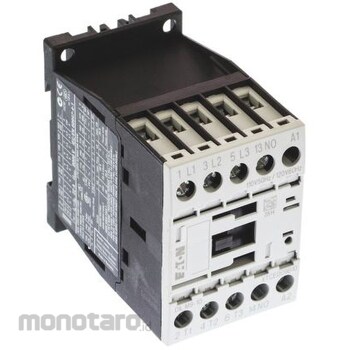

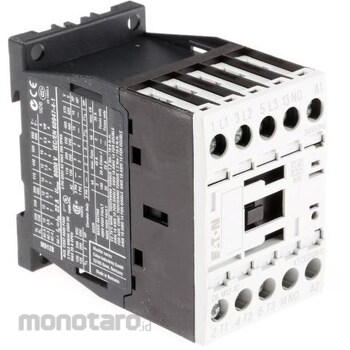

EATON Eaton magnetic contactor DILM series

Specification
Range: xStart, Series: DILM, Number of poles: 3, Coil voltage: 24 V dc, Contact current rating: 50 A, Contact voltage rating: 400 V ac, Pole/throw setting: 3-pole, under normal conditions Configuration: 3NO, Number of auxiliary contacts: 0, Allowable input: 22 kW, Terminal type: Screw, Width: 115mm, Operating temperature Max: +45°C, DILM contactor, 3 phase. X Start is the latest generation of Moeller. Contactor, overload relay, relay based on the proven DIL series. This generation of modular components adopts the latest technology in motor switching and control and brings many advantages to users. Features/Advantages. All contactors are modular and have a common design. Extremely durable. The series is versatile, interference tolerant and reliable for control circuits when used with a PLC. Maintenance Electronic power regulation of the magnetic system of the DC contactor results in a very small frame and makes the AC and DC units the same size. This allows the AC and DC contactors to be installed directly next to each other.The DC contactor from the three normally open main contacts 12 A has an electronic drive that eliminates the need for a coupling relay, up to 150 A. Suppressor circuit built into all DC contactors Box terminal with double coupling area ensures a secure connection when wiring different cross sections and prevents cabling failures
