Achieves high contact reliability with the knife edge structure Improves contact reliability by increasing the contact pressure with the knife edge structure.
The knife edge structure allows cleaning without sealing tape.
Heat resistance is further improved by using highly heat resistant resin. (Soldering peak temperature: 265 ° C)

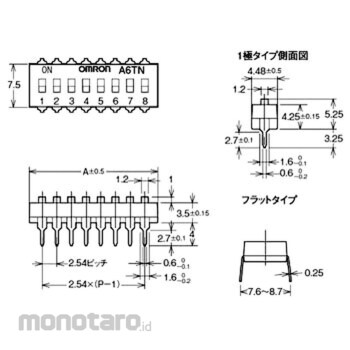

OMRON DIP switch A6TN
#Grup produk P115092109
Spesifikasi
| AS ONE Part Number | 64-3337-61 |
|---|---|
| Color | (Strike) White |
| Dimension A (mm) | 22.3 |
| Electrical Durability | 1000 times or more |
| Electrical Rating | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 100 VDC) |
| Mass (g) | 1.1 |
| Number of Poles | 8 |
| Operating Humidity Range | 35 to 95% RH (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -30 to +85 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 490 or more |
| Type | Convex type |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: 300 VAC 1 min |
