Board hole insertion terminal type contact part with abundant pole number specifications is gold-plated, twin contacts ensure high reliability with a self-cleaning mechanism by sliding.
A lineup of types with washable sealing tape.

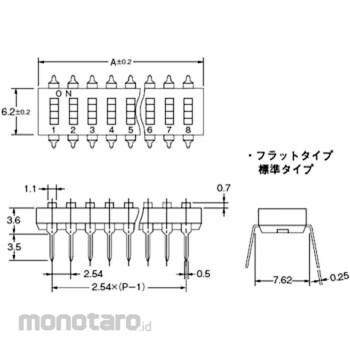

OMRON DIP switch A6T
#Grup produk P115092084
Spesifikasi
| Electrical Durability | 1000 times or more |
|---|---|
| Electrical Rating | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Operating Humidity Range | 35 to 95% RH (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -20 to +70 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: AC500V 1min |
