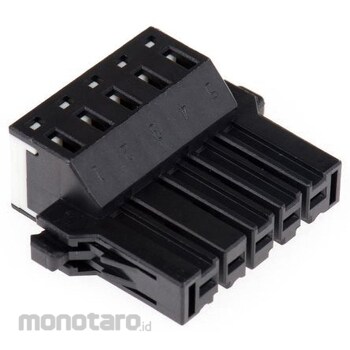

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) connector housing female 5 pole 1 row 5.08mm J300 series

Specification
Number of Contacts = 5 Number of Rows = 1 Pitch = 5.08mm Gender = Female Mounting Type = Cable Mount Series = J300 Body Orientation = Straight Length = 39.32mm Depth = 29mm Housing Material = PBT UL94V-0. J300 / J-FAT- Si Spring Terminal Connectors. 5.08 mm pitch detachable J-FAT-Si connectors feature termination with an internal spring locking mechanism for connecting the connector to wires. This eliminates the need for separate crimp terminals. All you have to do is strip the outer covering of the wire and insert it into the connector while deflecting the lock spring using a tool (J-FAT-OT sold separately) that is easy to work manually.J300 Series / J320 Header < 707-9016') Mating with 707-9016 Two single row connectors for normal type (**JFAT-S A *GF-* etc.) and reverse type (**JFAT-S B *GF-* etc.) available on 707-9044 dual row M-type headers (typical part number < 707-9044') Polarized by selecting corresponding key code X or Y (**JFAT-S* Y GF-* etc.) Wire size: 14-28 AWG J-FAT-OT is used to insert/remove wires from connectors
