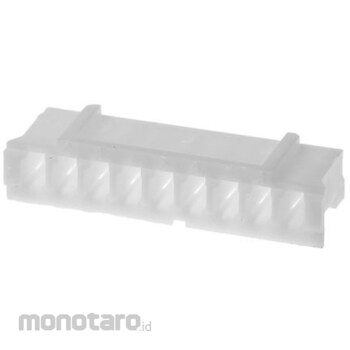

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) Connector Housing 9 poles Pitch: 2mm 1 row PHR-9
#Grup produk P115090466
Spesifikasi
| Cell Spacing (mm) | 2 |
|---|---|
| Connection Direction | Straight |
| Length (mm) | 16 |
| Material (Housing) | polyamide |
| Number of Lines | 1 |
| Number of Poles | 9 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | PHR |
| Suitable Crimping Terminal | PH Series Breakable Crimp Connectors |
| Surface Mount Device | Cable mount |
| Width (mm) | 4.5 |
| male / female | Female |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationPH Series Wire-to-Board Housings. JST's PH series is a reliable, low-profile, single-row housing for PH series crimp contacts. It is designed for high-density wiring within the PCB. Features: 2.0 mm pitch, 2 to 16 positions, highly reliable contacts, fully covered headers ensure proper connection to the mating housing, natural color (white), UL94V-0 flammability rating
