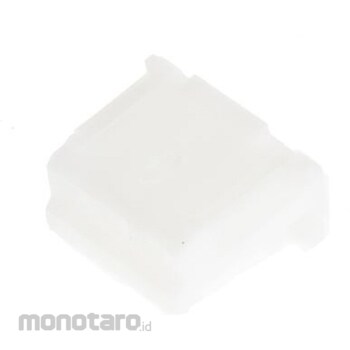

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) Connector Housing 3 poles Pitch: 1.5mm 1 row ZHR-3
#Grup produk P115090040
Spesifikasi
| Cell Spacing (mm) | 1.5 |
|---|---|
| Connection Direction | Straight |
| Length (mm) | 6 |
| Material (Housing) | polyamide |
| Number of Lines | 1 |
| Number of Poles | 3 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | ZH |
| Suitable Crimping Terminal | ZH Series Breakable Crimp-Type Connectors |
| Surface Mount Device | Cable mount |
| Width (mm) | 3.4 |
| male / female | Female |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationJST PCB Connector Housings - ZH Series. The JST PCB connector housing product is part of the ZH series. These housings act as high-quality receptacles for the connector when mounted on a PCB. These are single-row housings designed for use with the ZH series and crimp contacts. Typical applications for ZH connector housings vary, but they are commonly found within consumer electronics, industrial control, storage, and networking systems. Features and Benefits: 1.5mm pitch; Visual confirmation of contact lock-in using retention lance; Natural color; Contact counts: 2 to 13 pins; Compact, durable design; Wire-to-wire and wire-to-panel configurations and fittings; Certifications: UL recognized E60389, CSA recognized LR20812, TUV recognized R9351092
