Bridgetek Bridgetek, Display Board Development Module FT810 FT810 Embedded Video Engine Credit Card (no display)
#Grup produk P115087684
Spesifikasi
| Classification | Kit: Development Module |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable Crimping Terminal | FT810 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

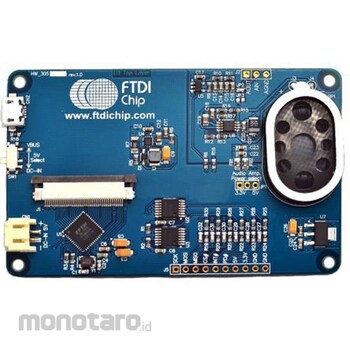

SpecificationEVE FT810 Credit Card Size PCB. The VM810C is a development module for the FTDI FT810 graphics engine device. It conforms to the FT810 technical specifications and supports LCD panels that fit the VM810C display connector. FT810 EVE2 embedded graphics engine device LCD panel and touchscreen input via 40-way flex cable connector On-board LCD backlight LED driver, 60 mA max On-board mono audio power amplifier with 3-stage audio filter and 8 Ω micro-speaker Audio line out option Host communication: Serial SPI, 5 V tolerant buffer Powered from Micro-USB, SPI connector or 2-pin connector Dimensions: 85.6 x 54.1 mm RS Product Codes: 901-5076 901-5076 VM810C50-N FT810 EVE2 module: 901-5073 901-5073 VM810C50-D FT810 EVE2 module + 5" WVGA touchscreen LCD panel: 901-4982 901-4982 FT810Q-T FT810 chip, QFN48 package format
