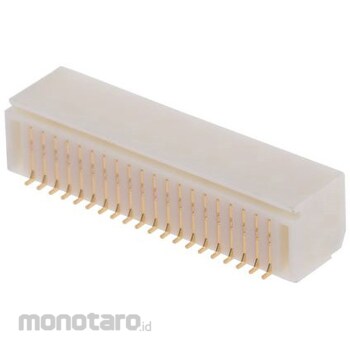

JST (Japan Solderless Terminal Manufacturing Co., Ltd.) Board Connection Header SHD Series

Specification
Series: SHD * Pitch: 1mm * Number of Contacts: 40 * Body Orientation: Right Angle * Shrouded/Unshrouded: Shrouded * Mounting Type: Surface Mount * Termination Method: Solder * Contact Plating: Gold * Rated Voltage: 50 AC/DC * For 1.0 mm SHD series housings, see typical part numbers 752-1686. 1.0 mm Wire-to-Board SHD Series Top and Side Entry Headers. These are ultra-compact, dual-row shrouded PCB headers from JST. They are available in top and side entry styles. These 4.0 mm pitch SMT mounting headers are designed for use with vacuum pick-and-place equipment. SHD series connectors feature ribs and grooves on the header and receptacle to prevent mis-insertion and distortion during mating and unmating. Rated voltage: 50V ac/dc Rated current: A Initial contact resistance: 20 mΩ (max) UL certified: E60389 CSA certified: LR20812 RoHS compliant
