A swivel joint is a joint with a rotary connection port. Use a flexible hose, etc. to connect the rotating shaft, and pipe the pipe so that the external load is as small as possible.
* The maximum working pressure depends on the maximum working speed.
* The maximum operating speed depends on the maximum operating pressure.
* External load is the load generated at the tip of the connection port by the restoring force of the flexible hose in each direction.
* When using air, be sure to lubricate by refueling (using Euler). Also, do not freeze.

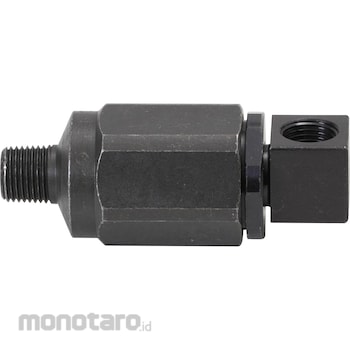

SHOWA Swivel joint
#Grup produk P115059760
Spesifikasi
| Connector Thread Type | Rc |
|---|---|
| Load (kg) | Outside / 1 or less (common use) |
| Maximum Operating Pressure (MPa) | 3 |
| Operating Temperature Range (°C) | -20 to +60 (Do not freeze when using air) |
| Shape | Swivel joint |
| Suitable fluid | General lubricating oil, hydraulic fluid, air (no oil can be used) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationStraight
