A valve that compares the pressures of two inlets and connects the high-pressure side with the outlet.
* Connect the two circuits to be selected to the entrance (PIN1) and (PIN2). *Use a G1/4 O-ring boss joint for piping. Do not use tapered threaded joints, as they may distort the body and cause malfunction.

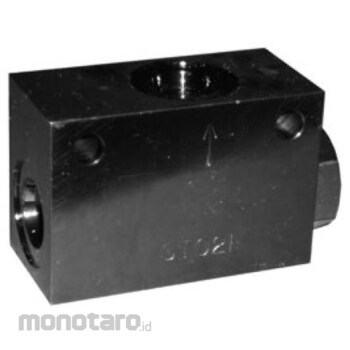

Daikin Industries Shuttle valve (screw connection type)
#Grup produk P115058345
Spesifikasi
| Mass (kg) | 0.5 |
|---|---|
| Maximum Flow Rate (L/minute) | 20 |
| Maximum Operating Pressure (MPa) | 21[210] |
| Nominal Diameter | 1/4 |
| Pressure (MPa [kgf/cm²]) | Pressure drop: 0.5[5] |
| Suitable fluid | Petroleum-based hydraulic oil, water / glycol-based hydraulic oil |
| Type | ST type shuttle valve |
| Type of Connection | Connection port G1/4 O-ring boss connection type |
