When the cracking pressure is reached, the check valve is pushed open, allowing oil to flow in only one direction. In addition, the check valve can be pushed up by external pilot pressure to allow oil to flow in the opposite direction. There is also a decompression type in which the small check valve opens before the main valve opens.
*External drain type and internal drain type cannot be interchanged. *When the outlet side P1 is directly connected to the tank during reverse free flow, use the internal drain type, but if back pressure is applied to the outlet side P1, use the external drain type. (see diagram)

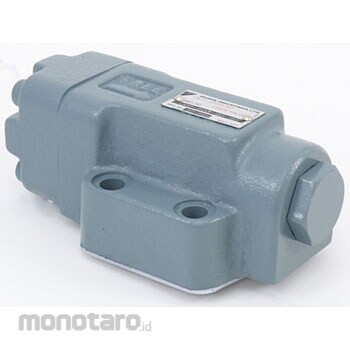

Daikin Industries Pilot check valve
#Grup produk P115056189
Spesifikasi
| Cracking Pressure (MPa) | 0.2[2] |
|---|---|
| Draining Type | External drain type |
| Mass (kg) | 5.4 |
| Maximum Flow Rate (L/minute) | 200 |
| Maximum Operating Pressure (MPa) | 25 |
| Pipe Connection Diameter | 3/4 |
| Suitable fluid | Petroleum-based hydraulic oil / water / glycol-based hydraulic oil |
| Type of Connection | Gasket mounting type |
| Valve Type | Directional control valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationJ series pilot check valve, decompression symbol: decompression type
