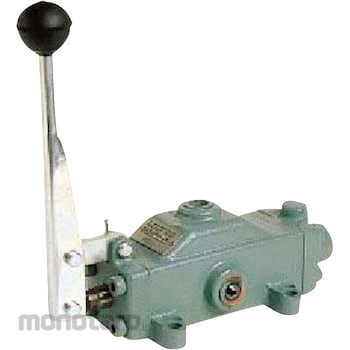

Daikin Industries Manually operated valve (screw connection type)
#Grup produk P115055162
Spesifikasi
| Dimension A (mm) | 104 |
|---|---|
| Dimension B (mm) | 86 |
| Dimension C (mm) | 100 |
| Dimension D (mm) | 124 |
| Dimension E (mm) | 118 |
| Dimension F (mm) | 49 |
| Dimension H (mm) | 252.2 |
| Dimension P (mm) | 59 |
| Dimension S (mm) | 252 |
| Dimension T (mm) | 20 |
| Dimension X (mm) | 136 |
| Direction | 4-way valve |
| Mass (kg) | 6.5 |
| Maximum Flow Rate (L/minute) | 75 |
| Maximum Operating Pressure (MPa) | 14 |
| Number of Positions | 3-position valve |
| Pipe Connection Diameter | 3/4 |
| Type Of Thread | Rc |
| Type of Connection | Screw connection type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
* Tighten the screw connection type (T) piping with the specified tightening torque. Model code: DMO4-*T03 Tightening torque N,m (kgf,cm): 70 to 80 (700 to 800) Model code: DMO4-*T06 Tightening torque N,m (kgf,cm): 90 to 110 ( 900-1100)
Feature
SpecificationD series manually operated valve
