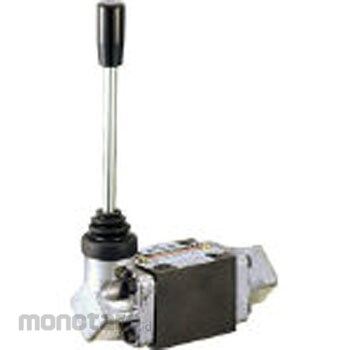

Daikin Industries Manual Operation Valve (JM Type)
#Grup produk P115055047
Spesifikasi
| Mass (kg) | 1.4 |
|---|---|
| Maximum Flow Rate (L/minute) | 30 |
| Maximum Operating Pressure (MPa) | 21 |
| Pipe Connection Diameter | 1/4 |
| Pressure (MPa [kgf/cm²]) | Allowable Exhaust Pressure: 7 [70] |
| Spool Spring Type | No spring type (with detent) 2 position valve |
| Suitable fluid | Petroleum-based hydraulic oil / water / glycol-based hydraulic oil |
| Type | J series manually operated valve |
| Type of Connection | Gasket mounting type |
| Valve Type | Directional control valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A directional control valve that switches the oil flow direction by directly operating the spool with a manual lever. Various circuits can be configured in combination with the 02 size stack valve.
Feature
SpecificationLever A port side
