With pressure and temperature compensation, the set flow rate is kept constant even if the load pressure and oil temperature change. It is possible to control from minute flow rate to large flow rate. The flow rate adjustment handle rotates 4 times, making it easy to fine-tune and re-set. Options such as a key for locking the flow rate adjustment handle and a jumping prevention mechanism are available.
*To obtain good pressure compensation performance, keep the pressure difference between the inlet and outlet at 1MPa (10kgf/cm ² ) or more.

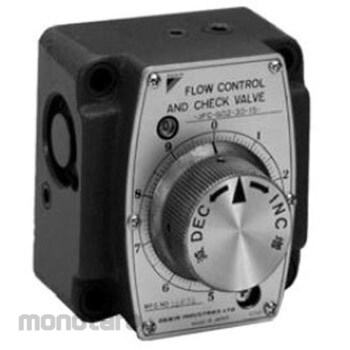

Daikin Industries Flow control valve/flow control valve with check valve (with pressure/temperature compensation)
#Grup produk P115053067
Spesifikasi
| Cracking Pressure (MPa) | Check valve: 0.035[0.35] |
|---|---|
| Flow Adjustment Range (L/minute) | 30 |
| Flow Rate (L/minute) | Free flow: 30 |
| Included Accessories | Hex socket head bolt (M8 x 55) x 4 |
| Mass (kg) | 3.9 |
| Maximum Operating Pressure (MPa) | 21[210] |
| Nominal Diameter | 1/4 |
| Suitable fluid | Petroleum-based hydraulic oil, water / glycol-based hydraulic oil |
| Type | J series flow control valve |
| Type of Connection | Gasket mounting type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationWith check valve, Option code 1: No flow adjustment handle lock key, Option code 2: With jumping prevention mechanism
