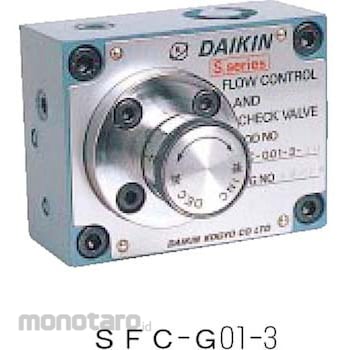

Daikin Industries Flow adjustment valve (gasket mounting type)
#Grup produk P115053003
Spesifikasi
| Dimension A (mm) | 95.3 |
|---|---|
| Dimension B (mm) | 9.5 |
| Dimension C (mm) | 76.2 |
| Dimension D (mm) | 53.8 |
| Dimension E (mm) | 38.1 |
| Dimension F (mm) | 101.6 |
| Dimension H (mm) | 82.6 |
| Dimension J (mm) | 52.4 |
| Dimension M (mm) | 86 |
| Dimension N (mm) | 62 |
| Dimension P (mm) | 50 |
| Dimension S (mm) | 22 |
| Dimension T (mm) | 14 |
| Dimension W (mm) | 6.5 |
| Included Accessories | Hexagon socket head cap screws [M6 x 50] x 2 (tightening torque 10 to 12.5 N . m) |
| Mass (kg) | 0.8 |
| Maximum Operating Pressure (MPa) | 7 |
| Pipe Connection Diameter | 1/4 |
| Suitable fluid | Petroleum-based hydraulic oil / water / glycol-based hydraulic oil |
| Type of Connection | Gasket mounting type |
