There are small-capacity lubrication line filters for resistance systems and positive displacement systems with bypass circuits. In addition, there are types in which the flow direction is opposite to the mounting surface, so you can select according to the line.
The element can be easily removed by removing the upper bolt, so maintenance is also easy.
* Use the N element for various hand pumps, YMAS type, SMA type, SMD type, etc.
* Maximum flow rate N element is for reference flow rate because it is for intermittent pumps such as cycle pumps.

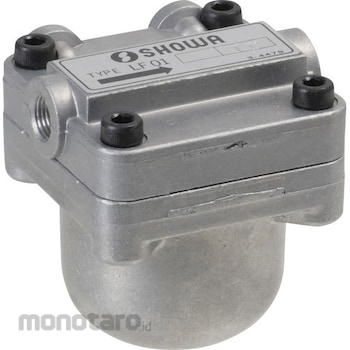

SHOWA Filter LF type
#Grup produk P115052907
Sebelum PPN:
Rp1.399.900 - Rp1.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector Diameter | Rc1/8 |
|---|---|
| Filter Element Model | N element |
| Filtration Accuracy (μm) | 30 |
| Filtration Area (cm²) | 17 |
| Material (Cushioning Element) | PVF |
| Maximum Flow Rate (L/minute) | 0.2 (reference) (at 70 mm²/s) |
| Withstand Pressure (MPa) | 4.5[45] |
