This is a proportional throttle switching valve that directly drives the spool with a proportional solenoid, detects its displacement with a differential transformer, and performs feedback control of the spool position. High-precision proportional flow control can be performed by combining a pressure compensating valve and a dedicated driver. The LEMS valve is a stack mounting type. By combining it with a dedicated reducing type pressure compensating valve (MGS) and stack mounting it under the solenoid operated valve, high precision meter-in control of the P port or meter-out control of the T port is possible. You can control the proportional flow rate with .
* Connect the tank and drain pipes directly to the tank without merging with other tank pipes. * Do not touch the zero point adjustment screw of the differential transformer, as it has been adjusted before shipment.

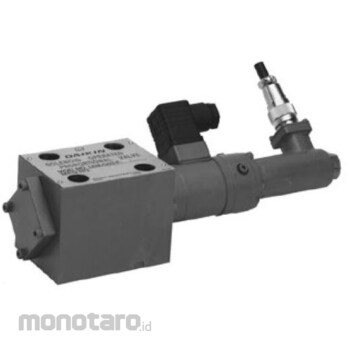

Daikin Industries Direct type electromagnetic proportional throttle valve
#Grup produk P115052004
Spesifikasi
| Connector Mounting Direction | DIN: Bottom, Differential Transformer: Bottom |
|---|---|
| Control Port | P port |
| Maximum Operating Pressure (MPa) | 21[210] |
| Nominal Diameter | 1/4 |
| Pressure (MPa [kgf/cm²]) | T port allowable exhaust pressure: 2.5 [25] |
| Rated Flow (L/min) | 25 |
| Type | Stack type electromagnetic proportional throttle valve |
