02 series stack type low pressure regulator.
*To obtain good decompression performance, the pressure difference between the primary side main circuit and the secondary side decompression circuit should be 0.4MPa (4kgf/cm ² ) or more. * Connect the tank pipe directly to the tank without merging with other tank pipes. *If pressure regulation from low pressure is required, use an external drain type to reduce the effect of back pressure from the tank port.

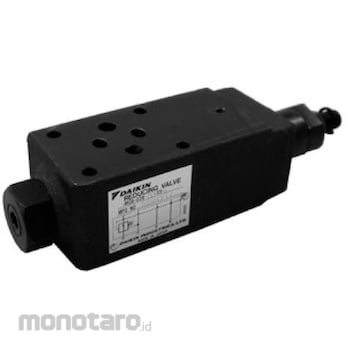

Daikin Industries 02 series stack type low pressure regulator
#Grup produk P115049408
Sebelum PPN:
Rp4.699.900 - Rp4.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Control Port | P port |
|---|---|
| Mass (kg) | 1.4 |
| Maximum Flow Rate (L/minute) | 20 |
| Maximum Operating Pressure (MPa) | 7[70] |
| Mounting Side | Pressure adjusting screw: B port side adjustment |
| Nominal Diameter | 1/4 |
| Suitable fluid | Petroleum-based hydraulic oil, water / glycol-based hydraulic oil |
| Type | Modular stack type low pressure regulator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationDrain symbol: Internal drain type
