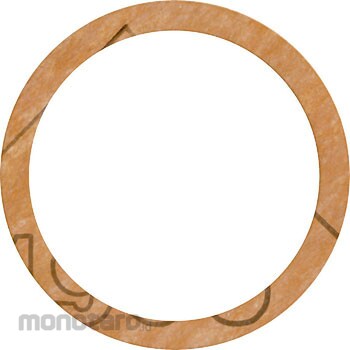

A brown NA (non-asbestos) joint sheet that does not contain any asbestos by adding an inorganic filler to inorganic fibers and aramid fibers and blending oil-resistant synthetic rubber as a binder.
Gaskets for flanges, valves, equipment, etc. of various pipes
Nichias Union packing (NA joint sheet)
#Grup produk P115036769
Spesifikasi
| Compression Ratio (%) | 7(34.3N/mm²) |
|---|---|
| Density (g/cm³) | 1.84 |
| Feature | Oil resistance |
| Flexibility | (Round bar 12 times thicker) Vertical / Horizontal / No crack |
| Material | Non-asbestos |
| Operating Temperature Range (°C) | -100~183 |
| Return Ratio (%) | 65(34.3N/mm²) |
| Suitable fluid | Saturated steam, hot water, water, salt solution, weak acid solution, weak alkaline solution, oil below 100 ° C, air, exhaust gas, inert gas |
| Tensile Strength (N/mm²) | 24.1 |
| Thickness (mm) | 1.5 |
| Type | Union packing |
| Withstand Pressure (MPa) | Water-based / oil-based fluid / max. 3, gas-based fluid / max. 1 |
