Yoshitake Pressure reducing valve (for cold / hot water) GD-26-NE series
#Grup produk P114995182
Spesifikasi
| Connector | JIS Rc |
|---|---|
| Diaphragm Material | Chlorine resistant EPDM |

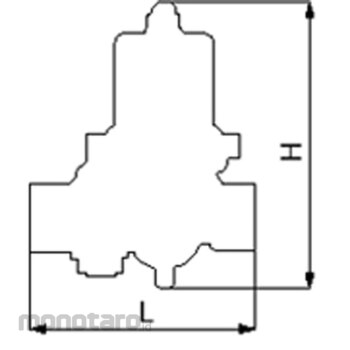

| Dimension H (mm) | 159.5 |
| Dimension L (mm) | 115 |
| Mass (kg) | 1.6 |
| Material (Main Unit) | CAC |
| Material (Valve Member) | FKM |
| Material (Valve Seat) | CAC |
| Maximum Temperature (°C) | 90 |
| Nominal Diameter (B) | 1/2 |
| Nominal Diameter A | 15 |
| Operating Temperature Range (°C) | 90 |
| Primary Pressure (MPa) | 1.0 or less |
| Secondary Pressure (MPa) | 0.05~0.35 |
| Secondary Pressure Adjustment Range (MPa) | 0.05~0.35 |
| Suitable fluid | Cold and hot water |
| Type | Direct acting |
| Type of Connection | Screwed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCold / hot water / primary pressure 1.0NPa / chlorine resistant specification
